Bellows

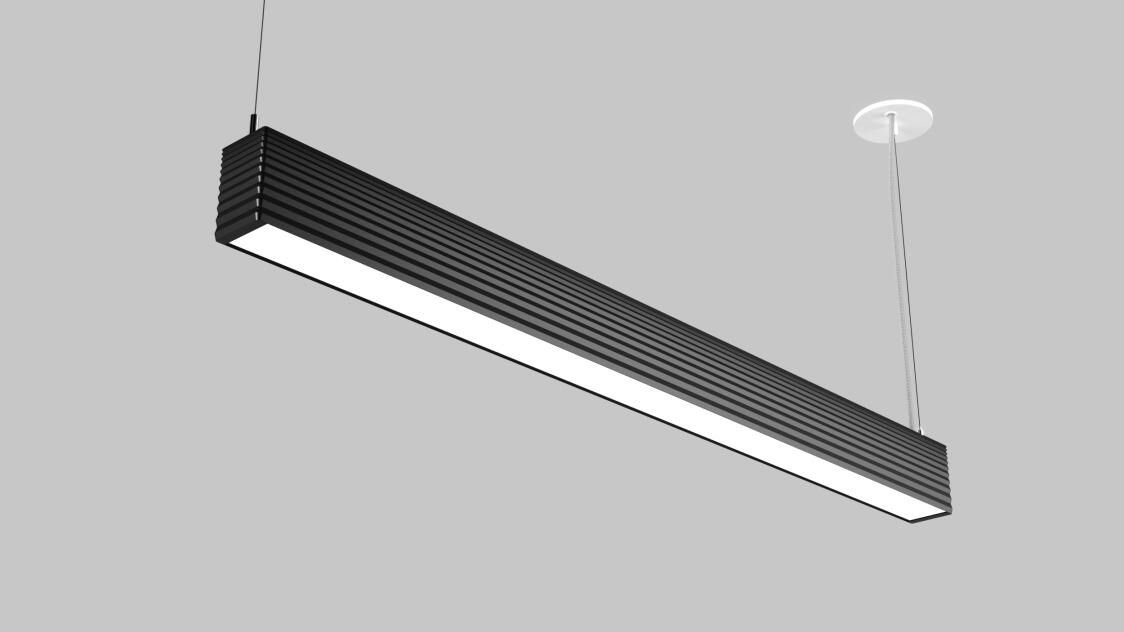

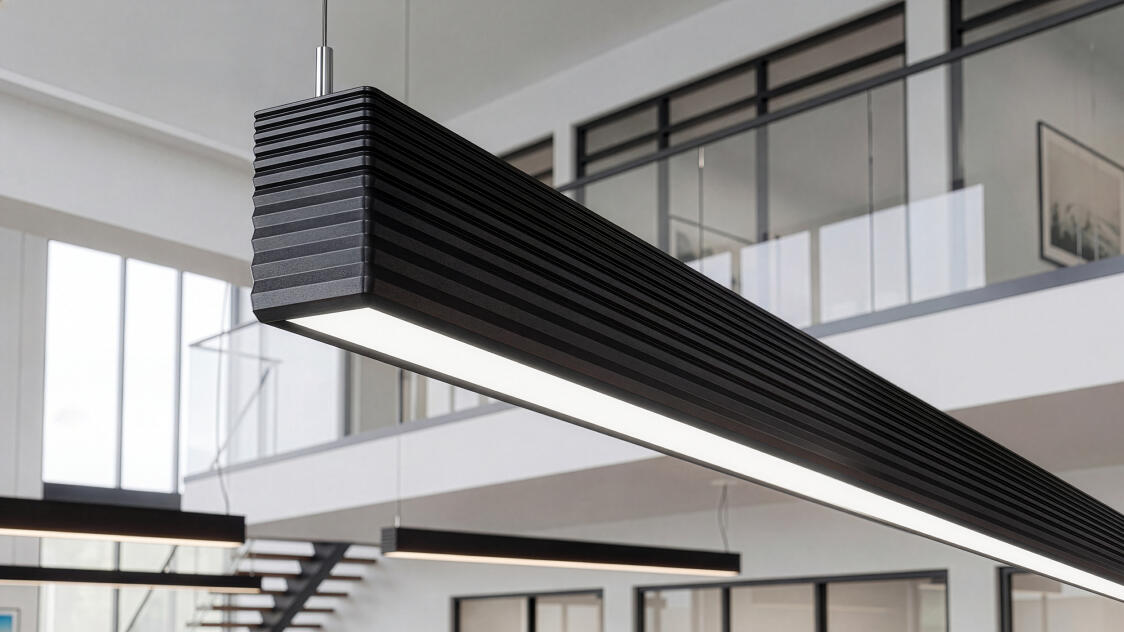

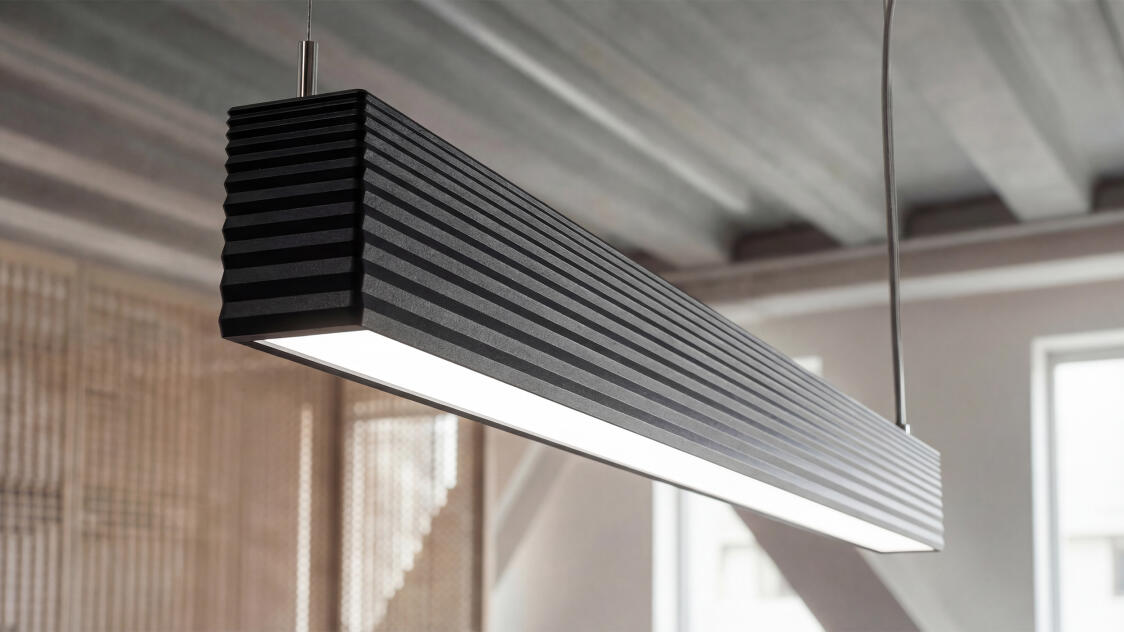

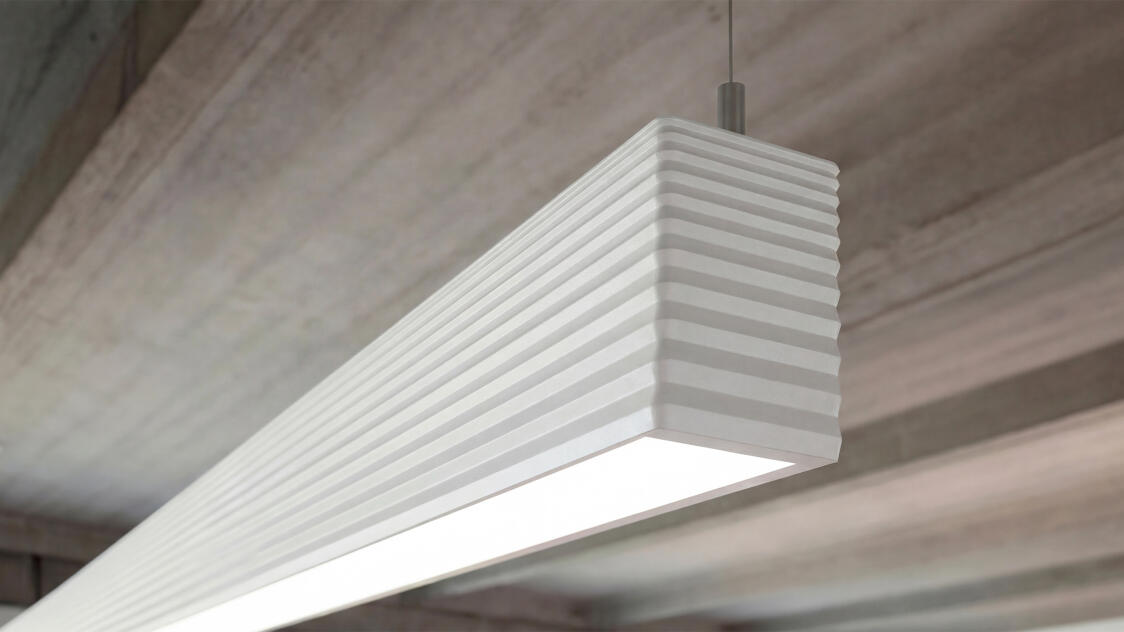

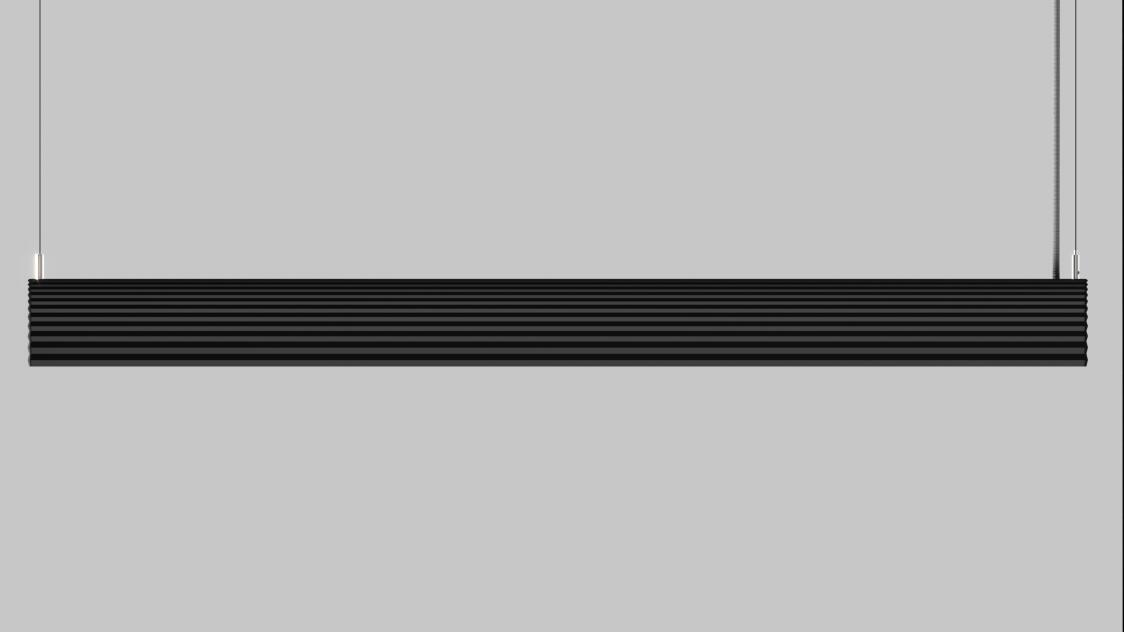

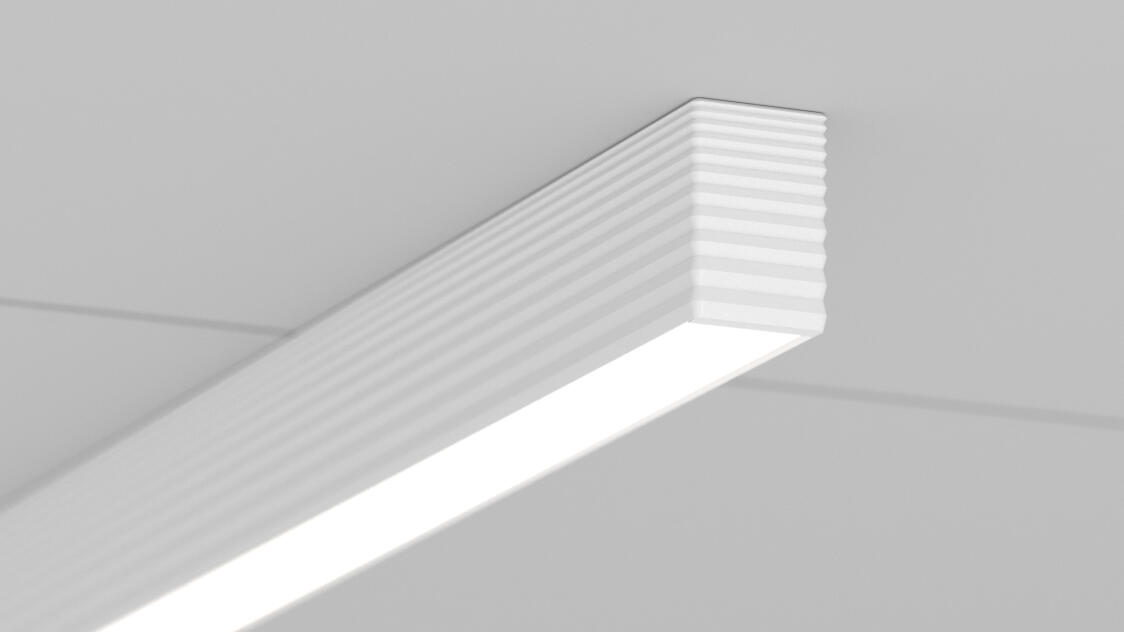

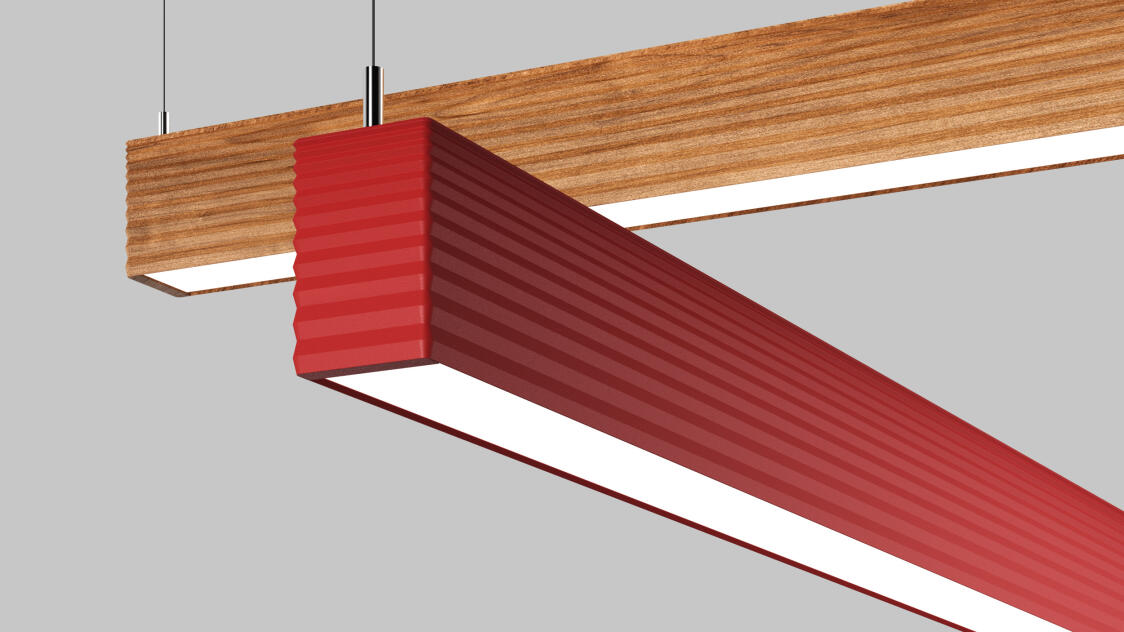

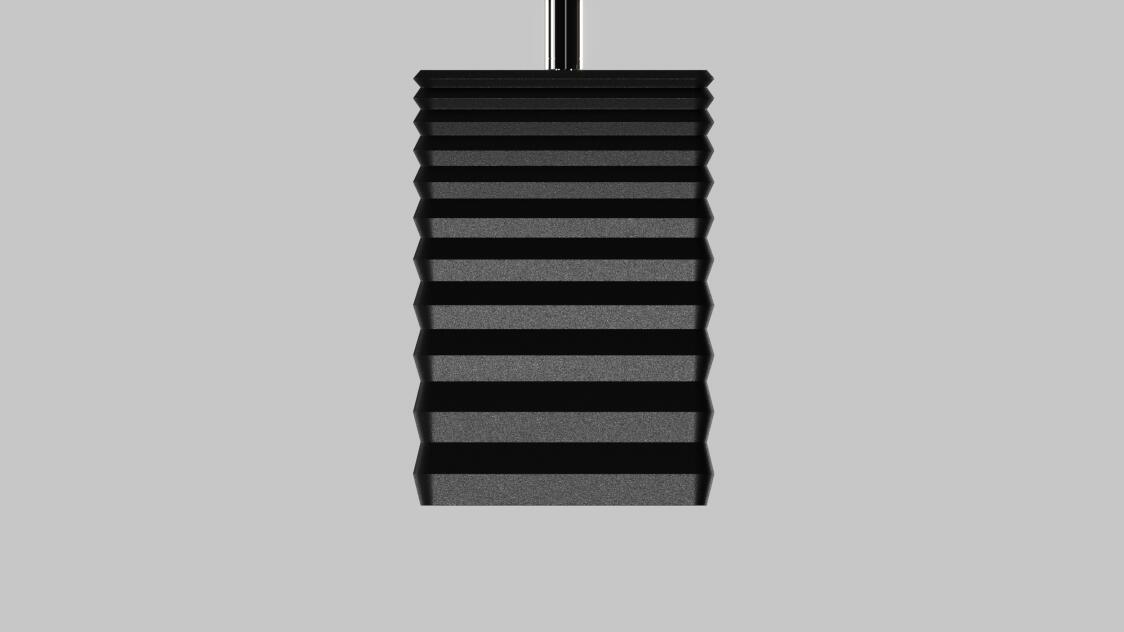

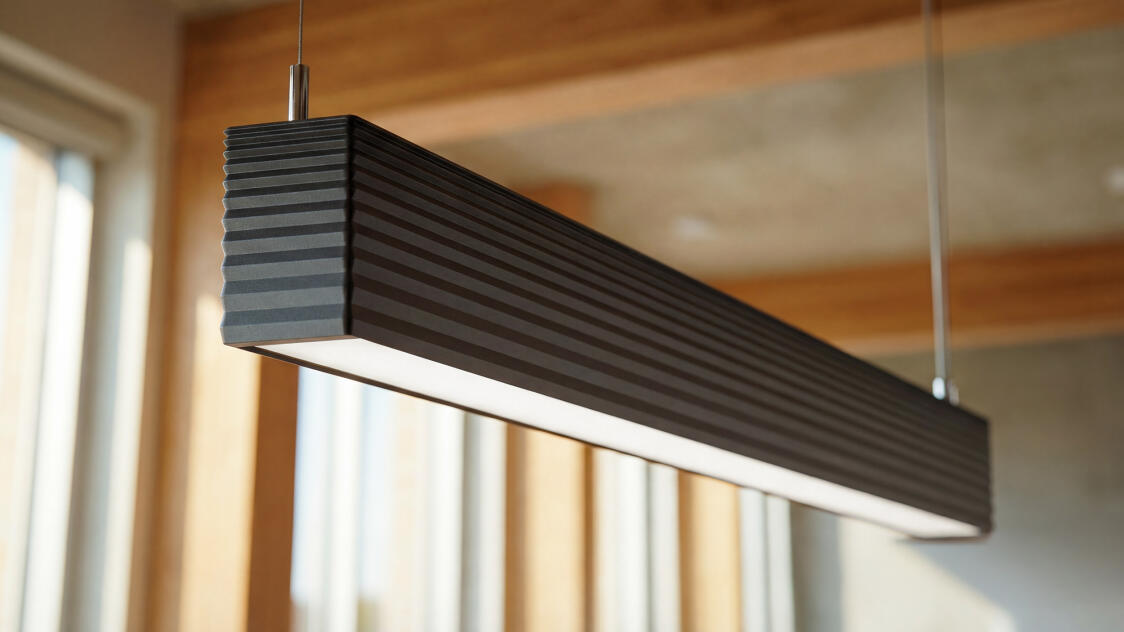

BELLOWS takes the standard linear system in a new direction, its sculptural pleated form introducing rhythm, depth, and character to the ceiling plane. Inspired by the ridged profile of fireplace bellows, this 2.5" aperture luminaire combines bold architectural presence with the reliable performance of a proven workhorse. Its seamless rollout lens delivers smooth, uniform illumination, while Diffused, Batwing, and Asymmetric distributions support a broad range of lighting applications. With multiple lumen packages, high-efficacy performance, BIOS integration for circadian support, and 13 distinctive finishes, BELLOWS brings together technical precision and a refined, tactile design language in one expressive architectural fixture.

FULL SPECIFICATION SHEET

Imperial
Imperial Metric

Downloads

Tech Specs

Body

Aluminum.

Finish

Powder coated.

Suspension

Steel cables.

Power cable

Silver braided.

Drivers

HPF electronic drivers for 120-277V, 347 (EU-240V). The driver is integral to the fixture housing.

PoE

Can be integrated into your data network via Power over Ethernet (PoE) connectivity.

BIOS

For circadian lighting, consult factory.

Junctions

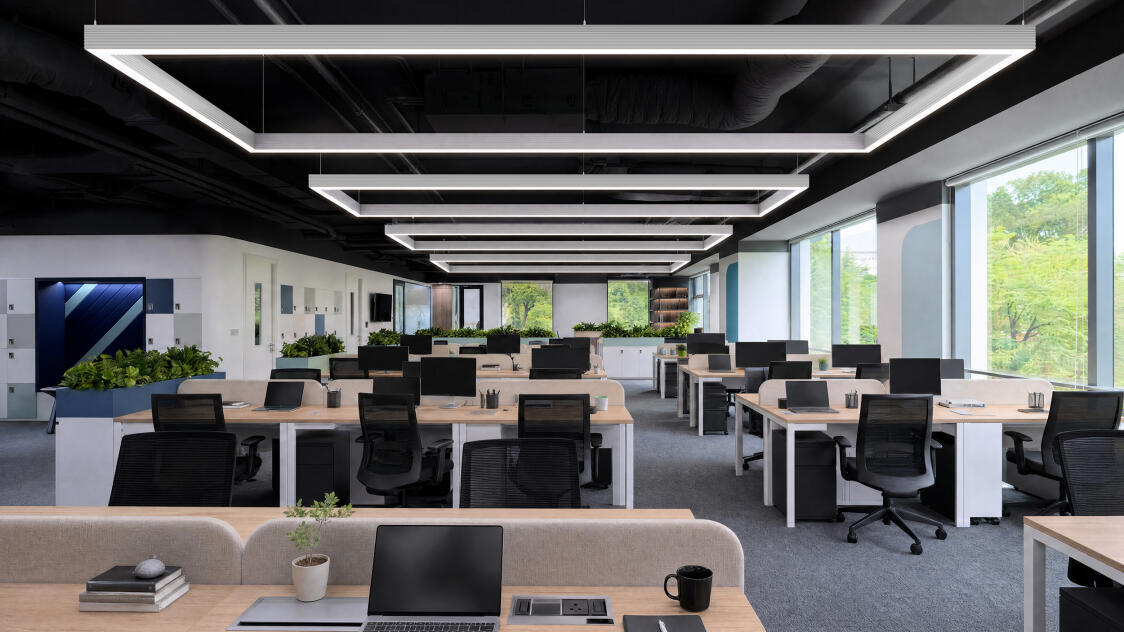

X and T junctions available, consult factory.

Tunable White

Tunable White range from 2700K to 6500K is available.

Delivered lumens

Delivered lumens & LPW based on 4000K CRI 80+

Mechanical

Luminaires mount directly over J box (by others).

Fixture Lengths

Available in 1" increments. Contact the factory for details.

Reported L70 @25°C (77°F)

> 60,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Estimated L70 @25°C (77°F)

> 165,000 hrs @ 2000 lumens/ft (6000 lumens/m)

Lens

Opal acrylic lens in 2 versions: roll-out or snap-in. The snap-in version is provided with standalone luminaires, while the roll-out lens is designed for continuous systems. When an order includes both standalone and continuous units, the roll-out lens will be provided for all.

Integral Emergency system

Emergency option provides a 1.5 hour (3 hours for EU) emergency lighting facility. The self contained system includes the inverter module, NiCad batteries, LED charge indicator and test switch (NA only). Not available with a 347V supply.

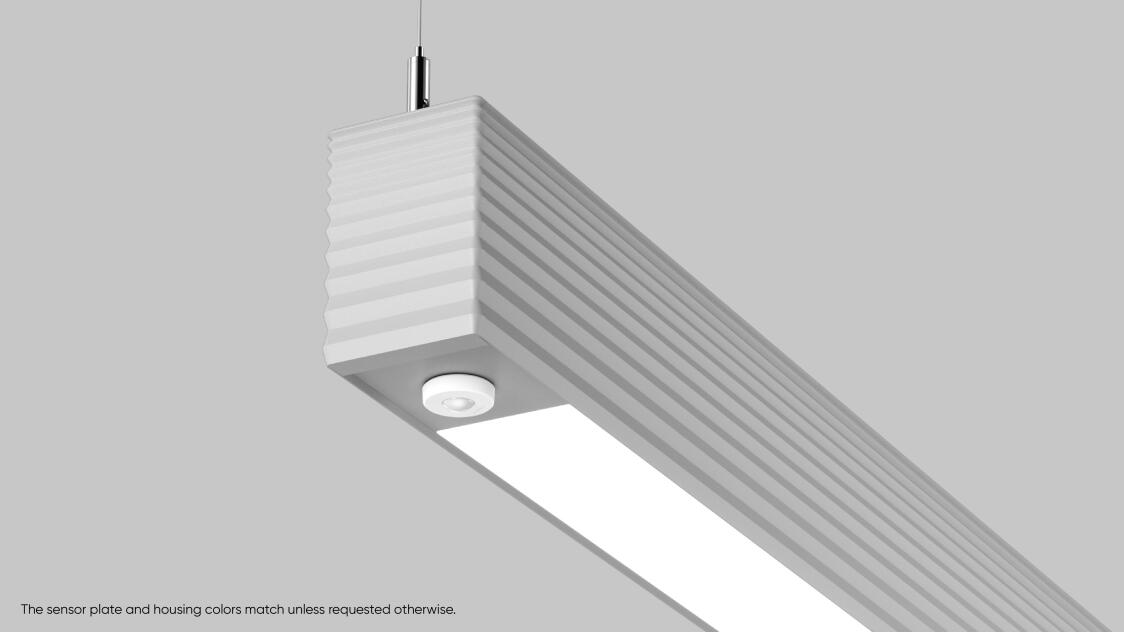

Luminaire Level Lighting Controls

Designed for integration with luminaire-level lighting controls from Cooper, Lutron, and Wattstopper. Standard options are listed on this specification sheet. Additional control solutions are available upon factory request.

Approvals

Damp Rated.

Designed By

Mirko Rotondi

Design

US Design Patent Pending.

Seismic Bracing

Seismic bracing kits are available to meet compliance requirements. Consult the factory for details.

Sustainability

Designed for on-site LED board, driver, and optic replacement. Contact the factory for maintenance documentation.

Approvals

  • ETL
  • CE
  • Grounding
  • Damp Location (Indoor Use)
  • Mounting Suited On Flammable Surfaces
  • IP 20

Optics & Features

Icon for Ceiling Ceiling
Icon for Suspended Direct Suspended Direct
Icon for Suspended Direct/Indirect Suspended Direct/Indirect
Icon for RGBW RGBW
Icon for Direct DD1 & DS1 Direct DD1 & DS1
Icon for Direct DD3 & DS3 Direct DD3 & DS3
Icon for Direct DD5 & DS3 Direct DD5 & DS3
Icon for Indirect UD1 Indirect UD1
Icon for Indirect UD2 Indirect UD2
Icon for Indirect UD3 Indirect UD3
Icon for Indirect UD4 Indirect UD4
Icon for Bios Bios
Icon for Declare Declare
Icon for PoE PoE
Icon for Tunable White Tunable White

Product Configurator

Qty.
Product Code
SFA0000 / SFB0000 / SFC0000 / SL00

Luminaire Type

Direction

Run Type

Custom Shape Description

Custom Shape File Upload

Optionally, upload a file that gives details for the requested shape.

Drop your file here
Browse
No file uploaded yet.
No file uploaded

Length - A

1 inch length increments available. Consult the factory.

Length - B

1 inch length increments available. Consult the factory.

Length - C

1 inch length increments available. Consult the factory.

Max Length Per Section

End Cap Profile

Lm/ft (Direct)

Lm/ft (Indirect)

CRI

CCT Direct

CCT Indirect

Direct Lens

Indirect Lens

Asymmetric Direction

Blackout Plate

Voltage

Dimming

Ceiling Type

Suspension

Fixture Finish

Quantity of Emergency Sections

Circuits

Sensors and Controllers

Product Family
